GALAXUS PLUS

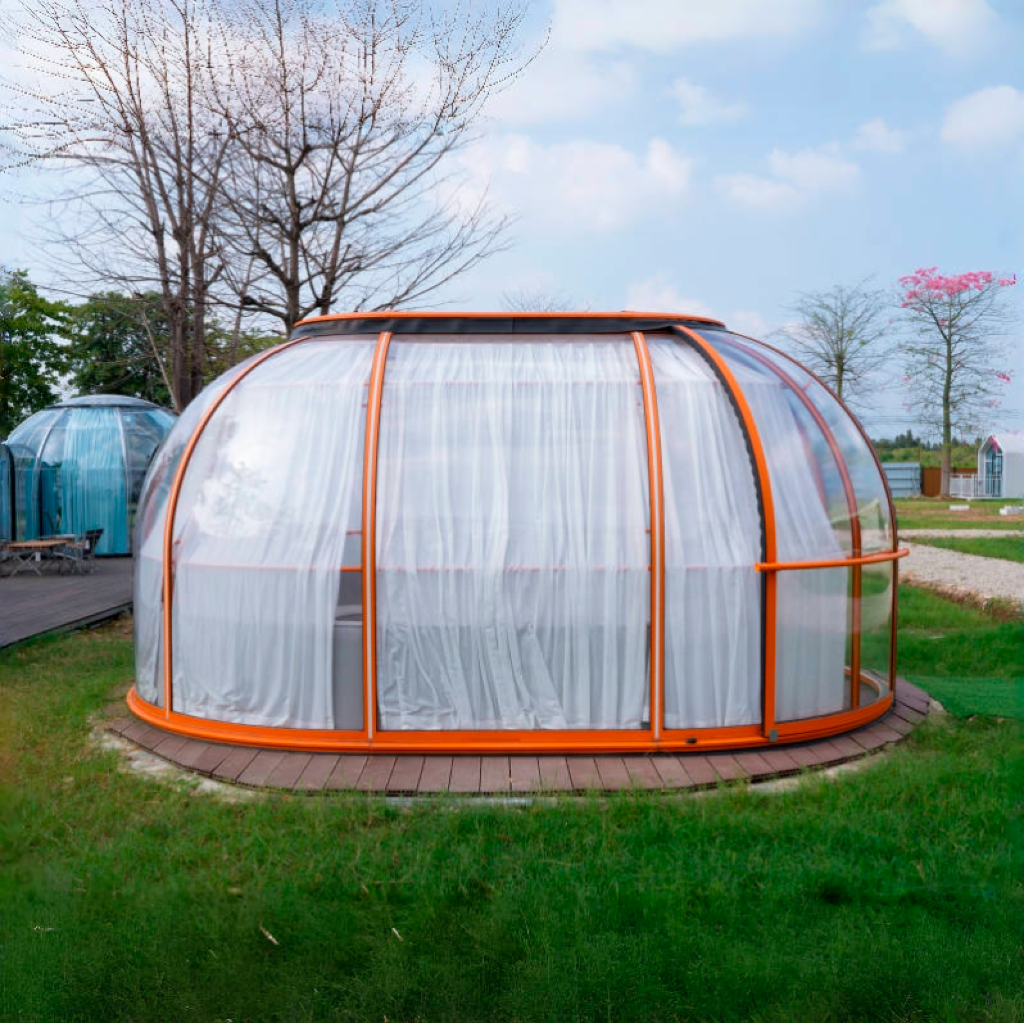

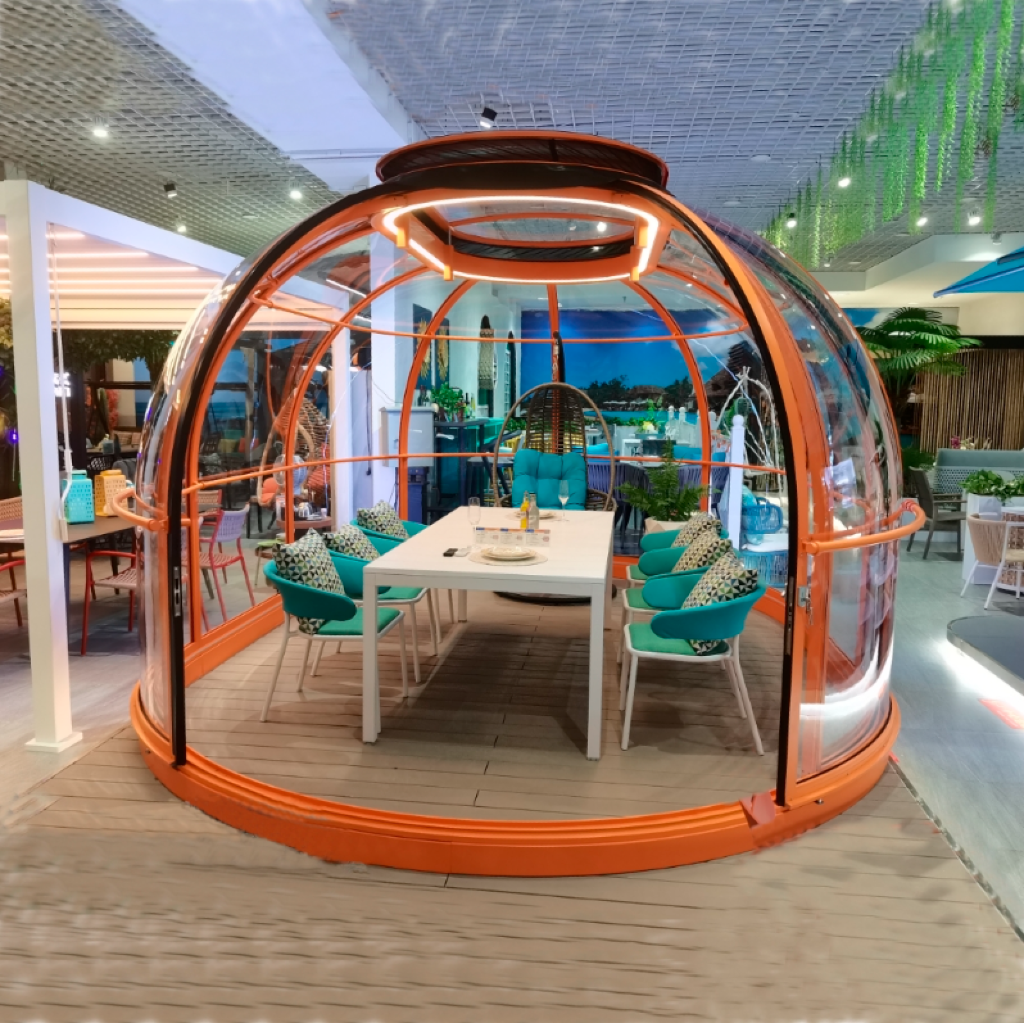

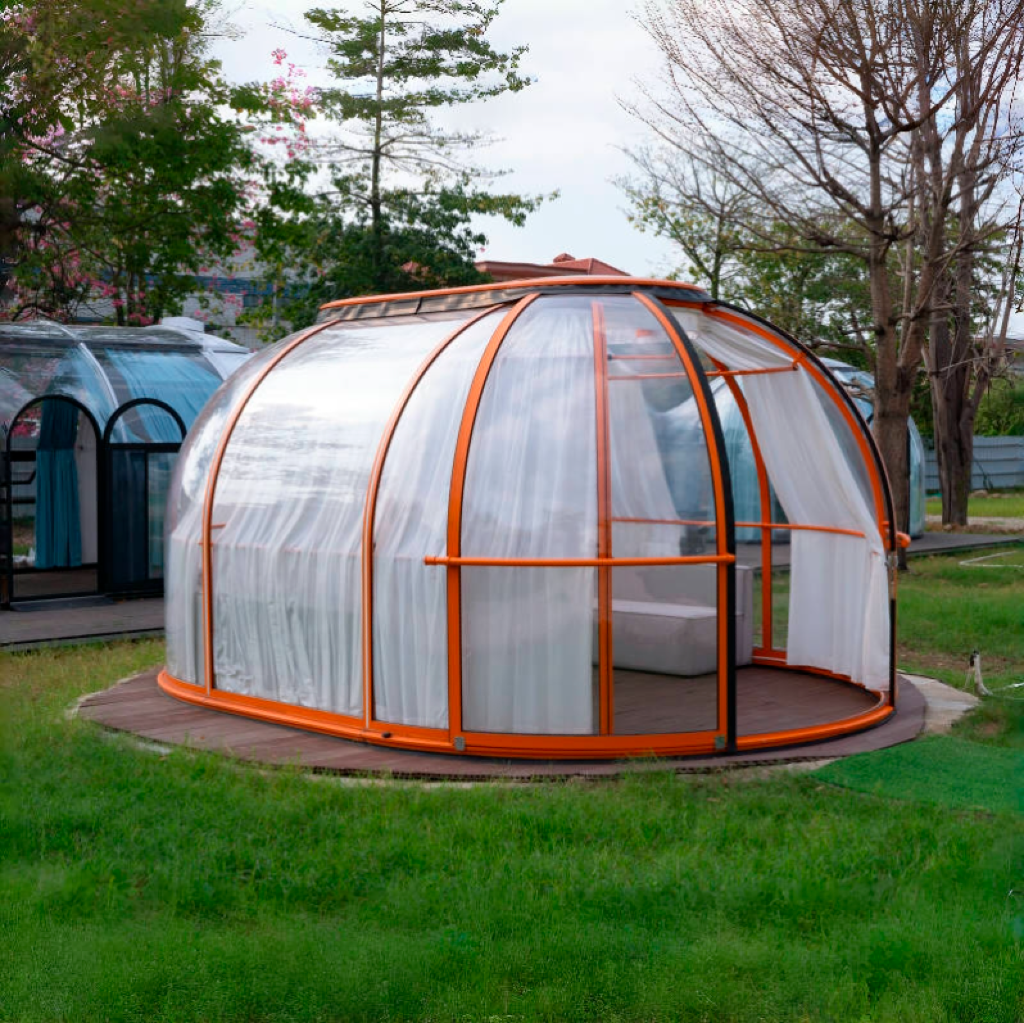

Model φ3.0-4.5：φ: 3000mm, L:4500m, H:2450mm, Aera:12m², People: 1-2 person, Applicable Scenarios Café, Western Restaurant

Model φ3.5-5.5：φ: 3500mm, L:5500m, H:2650mm, Aera:14.87m², Bed & Breakfast for 1- 2 People, Restaurant for 6-10 People Lounge, Tea Room,Multipurpose Room

Model φ4.0-5.5：φ: 4000mm, L:5500m, H:5500mm, Aera:18.56m², Bed & Breakfast for 1- 2 People, Restaurant for 8-10 People Lounge, Tea Room,Multipurpose Room

Model φ4.5-6.0：φ: 4500mm, L:6000m, H:2750mm, Aera:22.65m², Bed & Breakfast for 1- 2 People, Restaurant for 8-10 People Lounge, Tea Room,Multipurpose Room

Model φ5.0-6.5：φ: 5000mm, L:6500m, H:2750mm, Aera:22.65m², Bed & Breakfast for 1- 2 People, Restaurant for 8-12 People Lounge, Tea Room,Multipurpose Room

Model φ5.5-7.0：φ: 5500mm, L:7000m, H:2750mm, Aera:27.12m², Bed & Breakfast for 1- 2 People, Restaurant for 8-16 People Lounge, Tea Room,Multipurpose Room

Model φ6.0-7.5：φ: 6000mm, L:7500m, H:3300mm, Aera:37.26m², Bed & Breakfast for 1- 2 People, Restaurant for 16-26 People Lounge, Tea Room,Multipurpose Room

Model φ6.5-8.0：φ: 6500mm, L:8000m, H:3300mm, Aera:33.16m², Bed & Breakfast for 2- 4 People, Restaurant for 16-30 People Lounge, Tea Room,Multipurpose Room

Certification: CE, FCC

Wind load: 100km/h (0.5KN/m2)

Part I: Empty Cabin

1. Main Body: PC material imported from Bayer, Germany, with UV protection coating on both sides, offering 100% UV protection.
2. Top Channel: Aluminum alloy channel.
3. Aluminum Base: 6063-T5 aviation-grade aluminum alloy base, matte anodized, high-quality black finish.
4. Door: Arched aluminum alloy door with a physical lock.
5. Window: Arched aluminum alloy window with a mosquito screen.
6. Curtain Track: Aluminum alloy track with a transparent track for curtains.
7. Silicone Strip: Imported silicone used on the side seams of the PC panels to prevent the entry of fallen leaves and dust. It is rainproof and dustproof.
8. Installation Kits: Includes connectors, bolts, structural adhesives, and other installation components.
9. Door Pedal: Pedal placed in front of the door to facilitate guests entering the room.
10. Door Stop: Door stopper placed next to the door to secure it in place.

Part II: Optional Items

1. A/C Unit: OEM floor-standing air conditioner, 2 hp. Hanging type is optional.
2. Curtain: Thickened velvet sunshade curtain; customizable color.

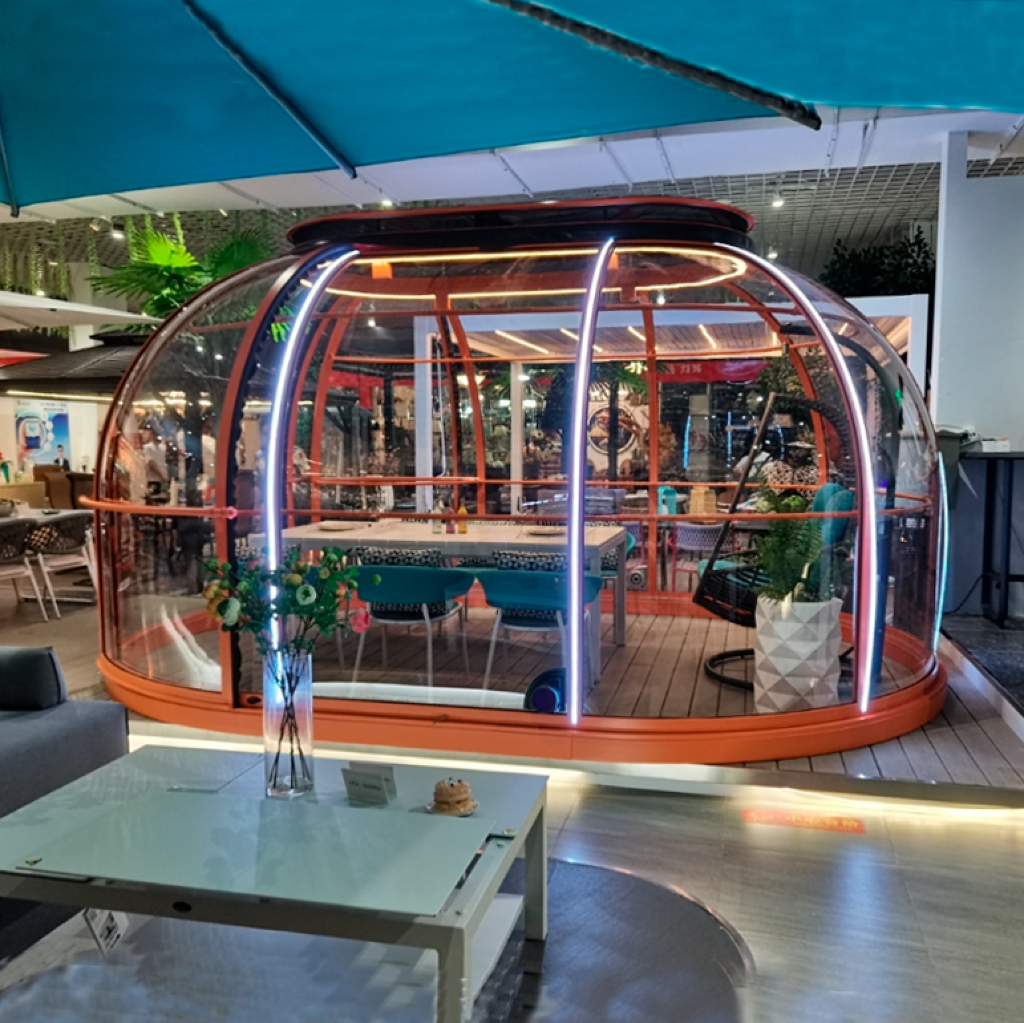

3. LED Light: Colorful LED lighting system with interior top LED strips and exterior bottom LED strips, controlled via a mobile app + electric box.

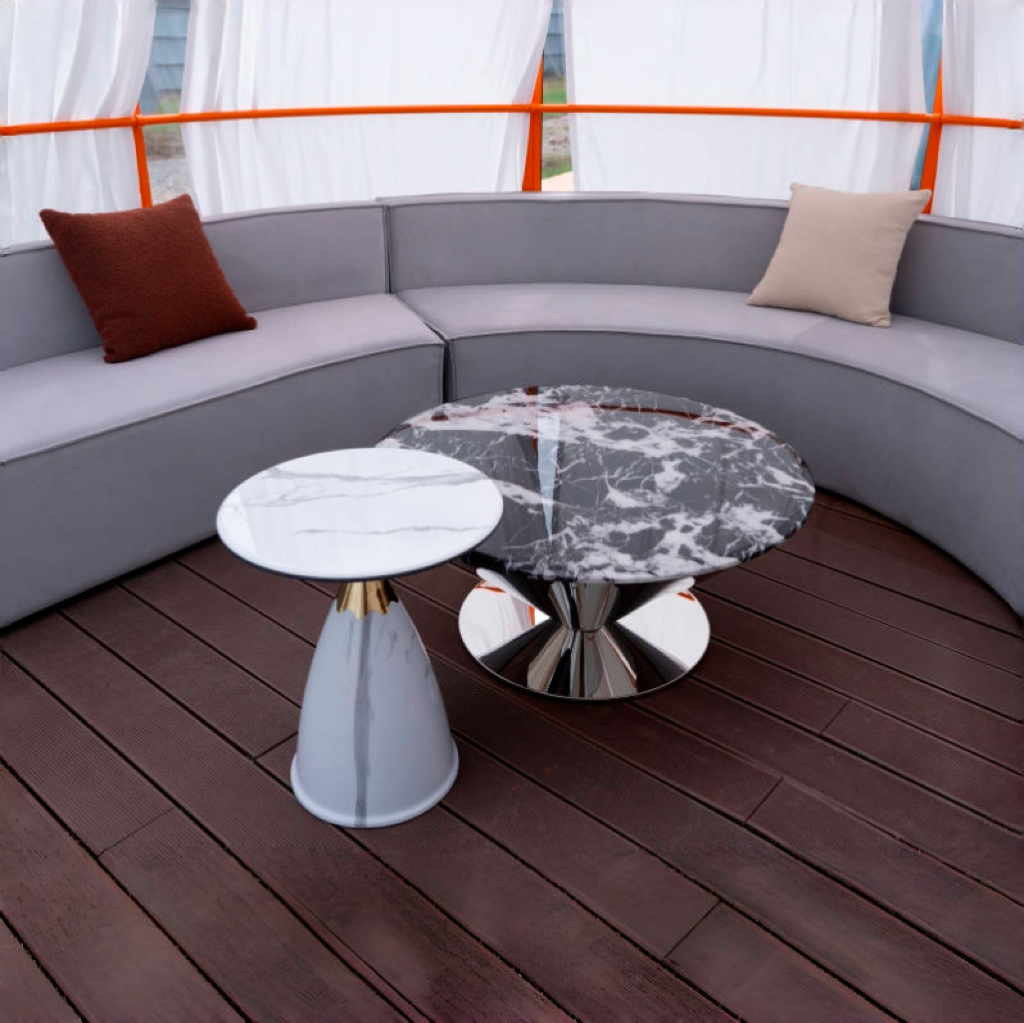

4. Furniture Pack: 2*1.5 (m) bed, two (30*30 cm) bedside tables, 1 chair, 1 side table, 1 clothes rack.
5. Integrated Bathroom Set: Complete built-in bathroom,  2*1*2 (m), with partition wall, toilet, shower, basin faucet, basin drain, shower curtain, bathroom door, ceiling, exhaust fan, lighting, switch, hot and cold water pipes, angle valve, metal braided hose, floor-mounted base with two floor drains, toilet paper holder, and specialized flooring.
